Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Product Name: | New SEM Motor Grader 921 |
|---|---|---|---|
| Transmission: | Hangchi 6WG180 | Model Number: | SEM919 |
| Emission Standard: | Euro 3 | Rated Power: | 162KW/210Hp |
| Power Source: | Diesel | Weigh: | 15930KG |
| Engine: | SC9DK220G3 | Reverse Speed: | 25km/h |
| Forward Speed: | 40km/h | Location: | Shanghai Yard |
| Dimensions (L X W X H) (mm): | 8854*2630*3360mm | ||
| Highlight: | used komatsu motor grader,articulated motor grader |
||

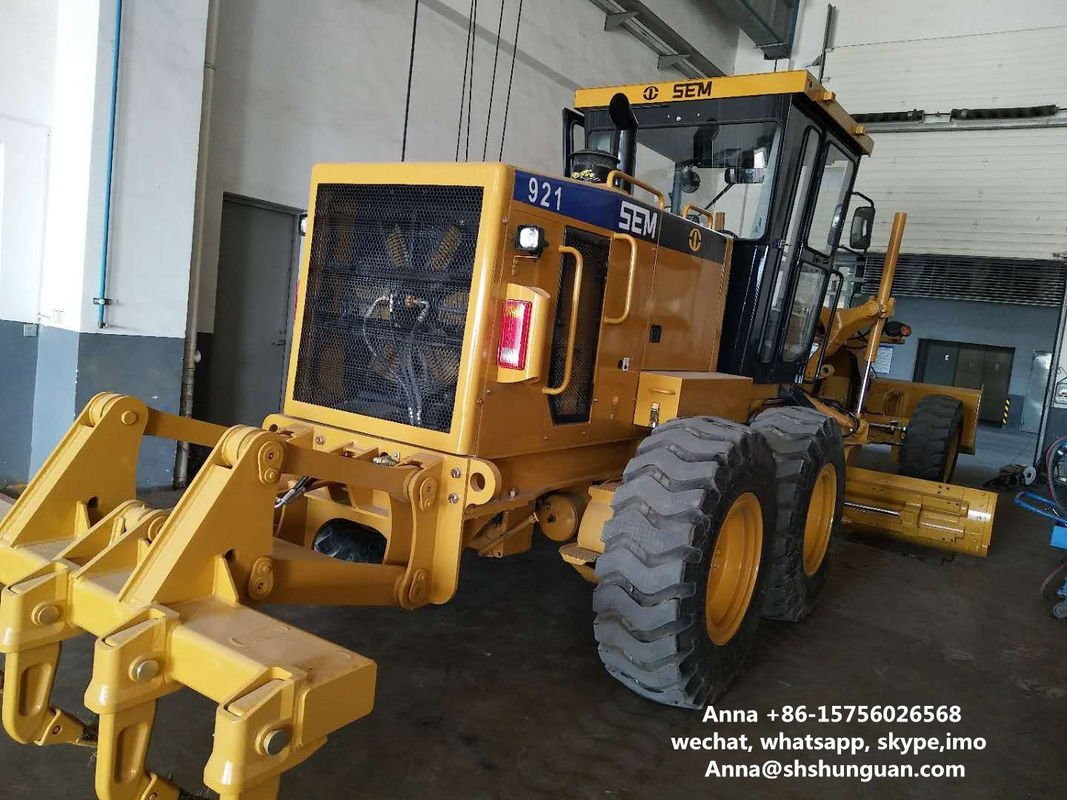

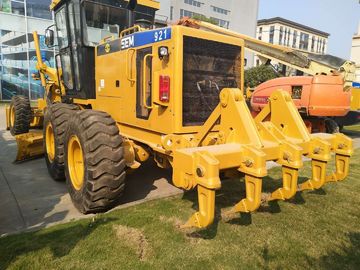

Chinese new SEM 921 motor grader with ripper and blade
Product Description
| Operating Weight | 15,930 kg |

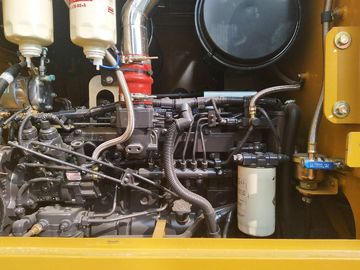

| Engine Model | SDEC SC9D220G2 |
| Rated Power | 162 kW/217 hp |
| Overall Dimensions L*W*H | 8854x2630x3360 mm |
| Blade Length | 4,279 mm |
| Max. Drawbar | 85 kN |
| Max. Lift above Ground (Blade) | 475 mm |
| Max. Depth of Cut (Blade) | 715 mm |
| Max. Blade Tip - Forward | 40º |
| Max. Blade Tip - Rear | 5º |
| Front Axle Steering Angle Left/Right | 47.5º |
| Min. Turning Radius | 7.8 m |
| Tandem Oscillation (Front up) | 15º |
| Tandem Oscillation (Rear up) | 25º |
| Transmission Model | 6WG180 |
| Gears | F6/R3 |
| Tires | 17.5-25 |
